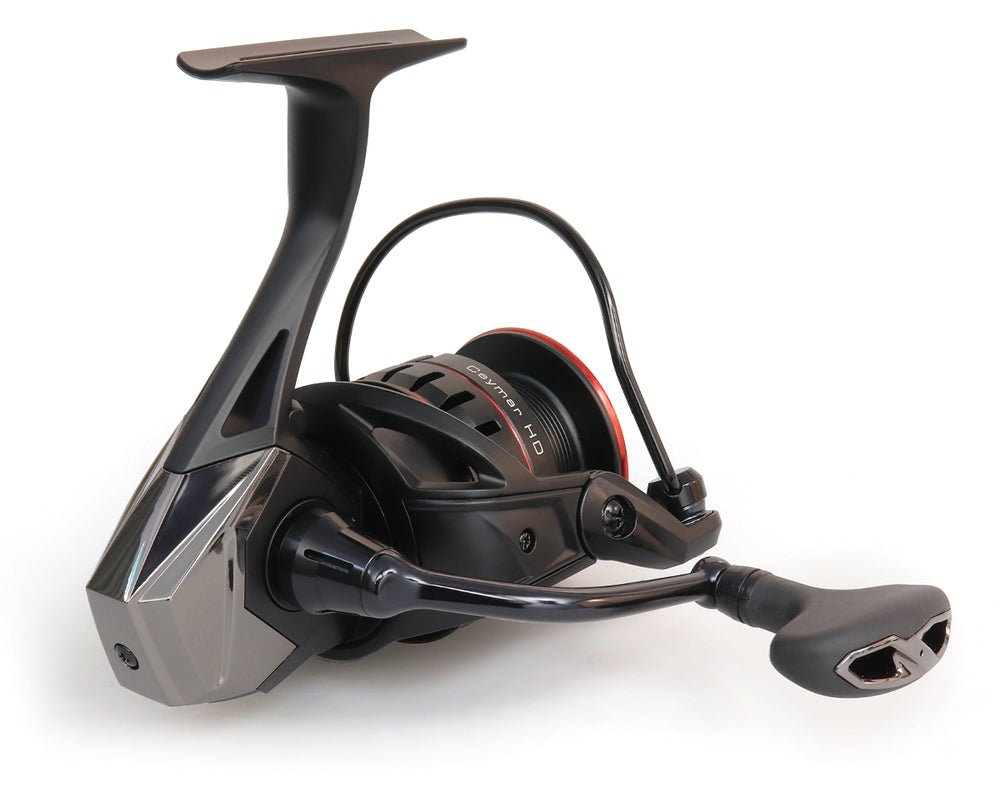

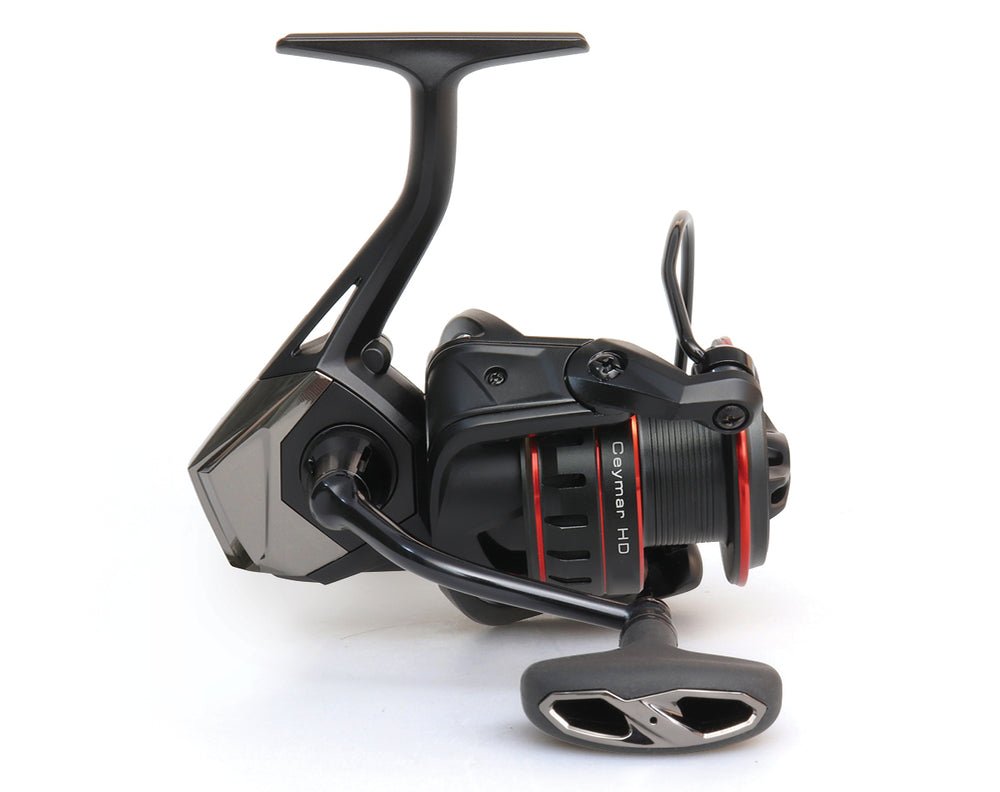

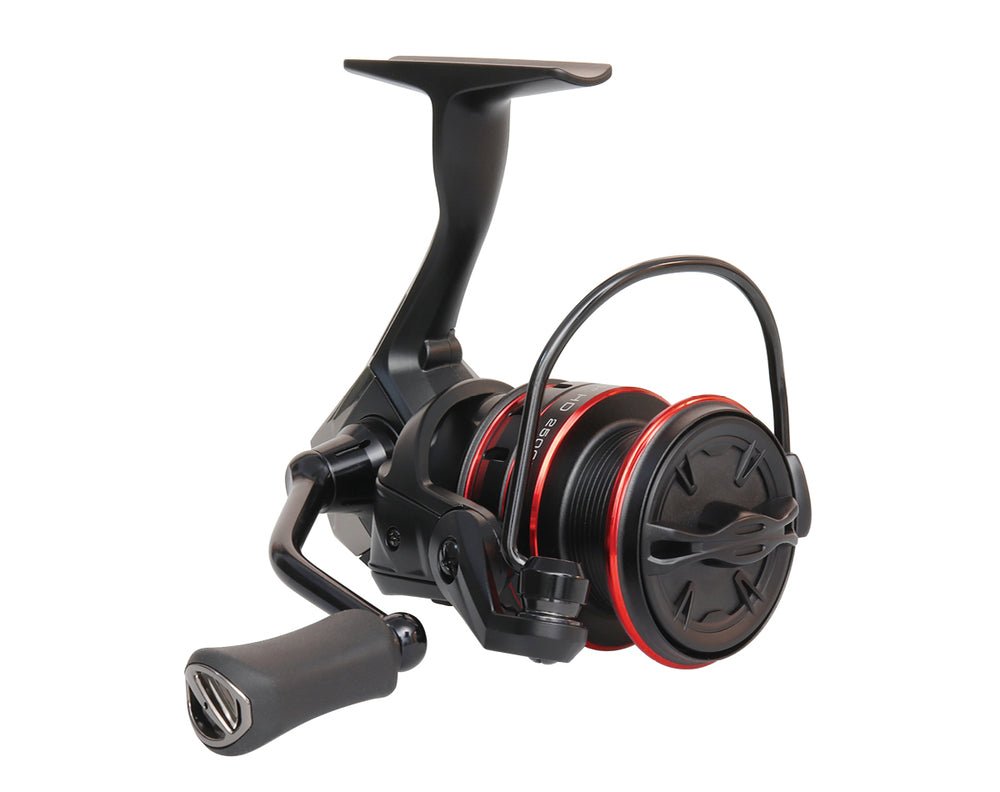

CEYMAR HD
- CYCLONIC FLOW ROTOR
- INSTANT ANTI-REVERSE
- HIGH DENSITY GEARING
- ROTOR EQUALISING SYSTEM
The brand new Ceymar HD is designed and developed based on the concept of Power!
Features such as HDG-II (high density oversized gearing), aluminum screw-in handle and a gear stabilization system providing the ultimate in strength and cranking power. In addition, the frictionless main shaft design effectively reduces rotational resistance, delivering an unrivaled lightweight and smooth feel.
-
HDG-II: Oversized High-Density Gearing
-
7HPB + 1RB corrosion resistant stainless-steel bearings
-
Multi-disc, oiled felt drag system
-
Quick-Set anti-reverse roller bearing
-
Precision machine cut brass pinion gear
-
Even Flow Line Roller system with DLC coating
-
Corrosion resistant frame, sideplate and rotor
-
Rigid machined aluminum screw in handle design
-
Pinion gear: double supported with ball bearings
-
Frictionless main shaft design provides smooth operation
-
Machined aluminum, 2-tone anodized spool
-
Heavy duty, solid aluminum bail wire
-
Rotor brake system prevents rotation while casting
|
Model |
Gear Ratio |
Weight |
Max Drag |
Capacity: dia. mm›metres |
|
CHD-1000HA |
6.0:1 |
196g |
5kg |
0.15›255m 0.20›140m 0.25›90m |
|
CHD-2500HA |
6.0:1 |
235g |
6kg |
0.20›250m 0.25›165m 0.30›110m |
|
CHD-3000HA |
6.0:1 |
235g |
6kg |
0.20›310m 0.25›200m 0.30›130m |
|
CHD-4000XA |
6.2:1 |
273g |
9kg |
0.25›280m 0.30›180m 0.35›130m |
|
CHD-C5000XA |
6.2:1 |
276g |
9kg |
0.30›240m 0.35›180m 0.40›125m |
